Hydraulic symmetrical rolling machine

Home / Product center / 3-Rollers Mechanical Rolling Machine / Hydraulic symmetrical rolling machine

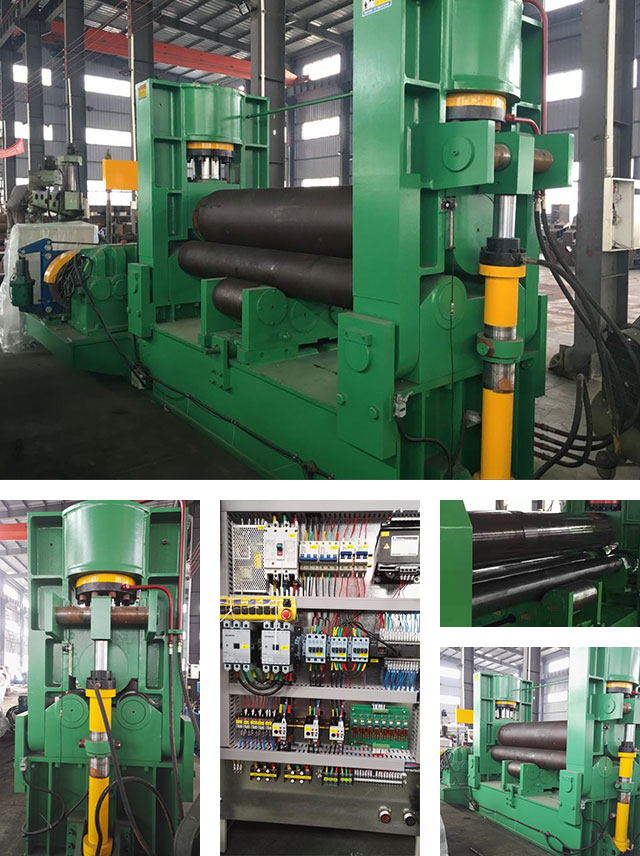

Hydraulic symmetrical rolling machine

PERFORMANCE FEATURES:
1、The construction of this machine is in the form of three roller symmetry.
2、The top roller in the central symmetrical position over the two bottom rollers does vertical motion up and dow through screw,nut and worm transmission.
3、The two lower rollers rotates and provide the plate materials with torque through the engagement of the output gear of the moderator with the gear of the lower rollers.
4、The construction of the machine is compact and the operation and maintenance is convenient.

Technical parameter:

規(guī)格型號(hào) Specification 最大卷板厚度 Max. thickness of coiled  plate (mm) 最大卷板寬度 Max. widthof coiled  plate(mm) 板材屈服極限 Yielding limit ofsheet metal(Mpa) 卷板速度 Coiling speed (m/min) 上輥直徑 Diameter of upper roller (mm) 主電機(jī)功率 Motor power (kW) 液壓電機(jī)功率 Hydraulic pow(kW)
30×2000 30 2000 245 4 360 22 7.5
25×2500 25 2500 245 4 370 22 7.5
30×2500 30 2500 245 4 420 30 11
25×3000 25 3000 245 4 430 30 11
30×3000 30 3000 245 4 450 30 11
40×2500 40 2500 245 3.5 500 37 15
40×3000 40 3000 245 3.5 540 45 18.5
50×3000 50 3000 245 3.5 580 55 22
60×3000 60 3000 245 3.5 660 75 30
70×3000 70 3000 245 3.5 710 90 37
80×3000 80 3000 245 3.5 770 90 37
90×3000 90 3000 245 3.5 820 110 45
100×3000 100 3000 245 3.5 860 110 45
110×3000 110 3000 245 3.5 900 132 55
120×3000 120 3000 245 3.5 950 132 55

Previous: Mechanical 3-roller symmetrical machine    Next: Hydraulic 3 -roller symmetrical rolling machine return
